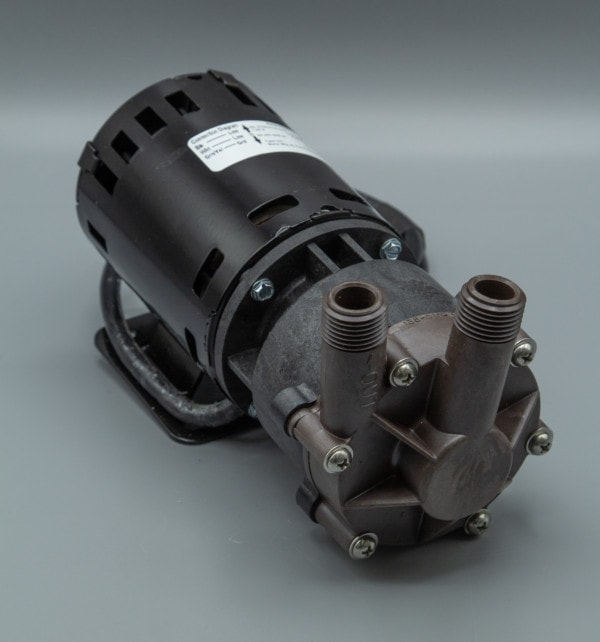

MDX-MT3 Magnetic Drive Pump

MDX-MT3 Magnetic Drive Pump
For a larger view click on the thumbnail



March Pump’s industrial MDX-MT3 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 8 gallons per minute at 1 foot, and its maximum head is 16 Feet (7PSI).

Unit60Hz
SystemUSMetric
Max Flow8 GPM 30.3 LPM
Max Head16 FT4.8 M
Power0.04 HP0.03 KW
Unit50Hz
SystemUSMetric
Max Flow7.9 GPM30 LPM
Max Head11.5 FT3.5 M
Power0.04 HP0.03 KW
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
  • Wet End: Ryton (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
  • Max Internal Pressure: 75 PSI / 5.2 bar
  • Max Liquid Temperature: 200 °F / 93 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0135-0036-0100MDX-MT3 115VStandard
0135-0037-0100MDX-MT3 230VStandard
The below are modified MDX-MT3's

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0135-0036-01001MDX-MT3, 1 Phase, 115V, Complete Standard Pump
0135-0037-01001MDX-MT3, 1 Phase, 230V, Complete Standard Pump
10135-0181-10006#10-32 x 1-1/8" Long Screw (Stainless)
20150-0051-10006#10 Washer
30135-0088-10001Front Housing with 1/2" MPT Inlet & Outlet (Ryton)
40135-0046-100011/16" CS x 2-7/8" OD "O" Ring (Viton)
50130-0028-10001Thrust Washer (Ceramic)
60130-0024-10001Shaft (Ceramic)
70135-0113-02001Impeller (Ryton)
80135-0087-10001Rear Housing (Ryton)
90130-0043-010010.250" Bore Drive Magnet
100135-0135-01001Motor Bracket (Plastic)
110135-0169-10004 #8-32 x 1/2" Long Hex Washer Head Screw (Stainless)
120135-0114-10001Motor, 1 Phase, 115V, 50/60 Hz
120135-0136-10001Motor, 1 Phase, 230V, 50/60 Hz

Options

Options Image
ItemPart NumberQtyDescription
30135-0128-10001Front Housing with 1/2" MPT Inlet & Outlet (Polypropylene)
40135-0122-100011/16” CS x 2-7/8” OD “O” Ring (Teflon)
40750-0150-100011/16” CS x 2-7/8” OD “O” Ring (EPDM)
70135-0129-02001Impeller (Polypropylene)
80135-0127-10001Rear Housing (Polypropylene)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0135-0114-1000
3 Foot Cord
60Hz: 1Ph 115V 0.04HP/0.03kW, 1.35 AMPS, 3450 RPM
50Hz: 1Ph 115V 0.04HP/0.03kW, 1.35 AMPS, 2850 RPM

0135-0136-1000
3 Foot Cord
60Hz: 1Ph 230V 0.04HP/0.03kW, 0.85 AMPS, 3450 RPM
50Hz: 1Ph 230V 0.04HP/0.03kW, 0.8 AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the MDX-MT3 Magnetic Drive Pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning.

Great for Chemicals Including

The MDX-MT3 has pumped Acetic Acid, Acetone, Benzene Sulfonic Acid, Citric Acid, Ethanolamine, Freon 11, Potassium Hydroxide, Potassium Permanganate, Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, DI Water, and many more chemicals. The MDX-MT3 may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the MDX-MT3. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial MDX-MT3 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 8 gallons per minute at 1 foot, and its maximum head is 16 Feet (7PSI). The standard wet end (the materials that come into contact with the solution) is composed of Ryton, Viton, and Ceramic. The inlet connection is 1/2 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.04 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March MDX-MT3 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March MDX-MT3 is suitable for your application, please contact March Pump.
