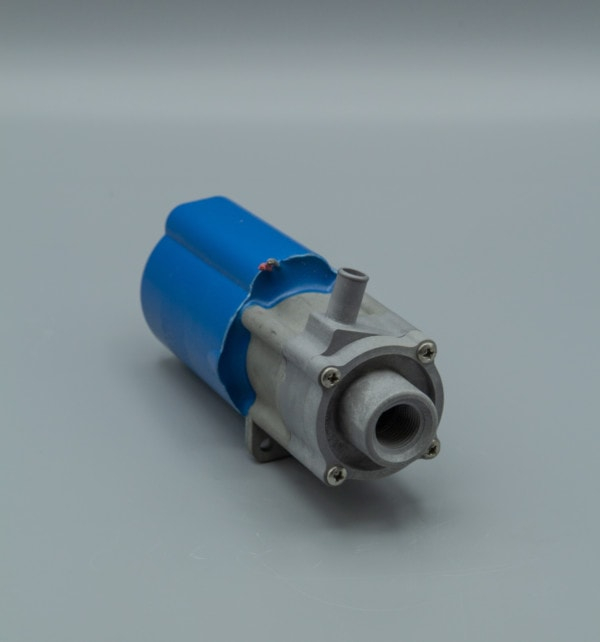

March Pump’s industrial 893-09 is an American submersible seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and heat transfer. It is capable of generating a maximum flow of 2.7 gallons per minute at 1 foot, and its maximum head is 10.6 Feet (4.5PSI).
| System | US | Metric |
| Max Flow | 2.7 GPM | 11 LPM |
| Max Head | 10.6 FT | 3.3 M |
| Power | 0.006 HP | 0.004 KW |
- Wet End: Noryl (Front and Rear Housings), Nylon (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft), Ceramic Magnet
- Uses: Must be submerged
- When submerged, the following is also in contact with the solution: Epoxy, Delrin, Motor Leads
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 120 °F / 49 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the 893-09 Magnetic Drive Pump include computer cooling, photographic processing equipment, refrigeration systems, and water displays.
Great for Chemicals Including
The 893-09 has pumped many chemicals. The 893-09 may have been modified to handle certain chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 893-09. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial 893-09 is an American submersible seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and heat transfer. It is capable of generating a maximum flow of 2.7 gallons per minute at 1 foot, and its maximum head is 10.6 Feet (4.5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Noryl, Nylon, Carbon/Teflon, Buna N, Stainless Steel, and Ceramic Magnet. When submerged Epoxy, Delrin, and the motor leads are also in contact with the solution. The inlet connection is 3/8 inch female pipe thread, and the outlet is 3/8 inch smooth. The standard motor is a 0.006 Horsepower DC Brushless Motor, available in 12 Volts. The 12 Volt Motor has an operating range from 7 to 14 Volts. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius when not submerged, or 130 Fahrenheit or 54 Celsius when submerged. The March 893-09 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March 893-09 is suitable for your application, please contact March Pump.
