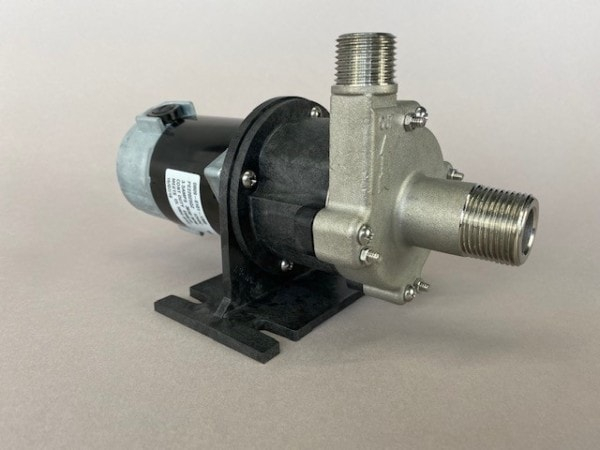

809-SS-HS-C 12V & 24V Mag Drive Pump

Für eine größere Ansicht klicken Sie auf das Vorschaubild

System	US	Metric
Max Flow	8 GPM	30.2 LPM
Max Head	15.5 FT	4.7 M
Power	0.04 HP	0.029 KW

Electrical/Air: 12V (Voltage Range 0-14) or 24V (Voltage Range 0-26)

Inlet: 3/4"MPT

Outlet: 1/2"MPT

Wet End: Stainless Steel (Front Housing, Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
Max Internal Pressure: 150 PSI / 10.3 bar
Max Liquid Temperature: 250 °F / 121 °C
Note: Product image may be different than actual product received.

Pump Curves & General Installation Sheets

Part Numbers

P/N	Pump Description	Modified With
0809-0177-0400	809-SS-HS-C 12V	Standard
0809-0177-0300	809-SS-HS-C 24V	Standard
	The below are modified 809-SS-HS-C DC's

Parts Breakdown

Item	Part Number	Qty	Description
	0809-0177-0400	1	809-SS-HS-C, 12V, Complete Standard Pump
	0809-0177-0300	1	809-SS-HS-C, 24V, Complete Standard Pump
1	0809-0205-1000	4	#8-32 x 1" Long Housing Screw (Stainless)
2	0809-0150-0010	1	Pump Housing with Center Inlet (Stainless)
3	0809-0165-1000	1	0.070" CS x 2.441" ID "O" Ring (Silicone)
4	0809-0043-1000	1	Thrust Washer (Teflon)
5	0809-0214-1000	1	Left Hand Thread Shaft (Stainless) Check shaft type before ordering replacement parts.
6	0809-0005-0200	1	1-11/16" Diameter Impeller (Ryton/Teflon/Glass)
7	0809-0012-1000	1	Rear Housing (Stainless)
8	0809-0205-1000	4	#8-32 x 1" Long Screw (Stainless)
9	0125-0083-0100	1	Drive Magnet (0.250 Bore)
10	0210-0036-1000	4	#8-32 x 3/4" Long Screw (Stainless)
11	0858-0004-1000	4	#8 Washer (Stainless)
12	0809-0058-1000	1	Motor Bracket (Plastic)
13	0125-0106-1000	1	Base (Plastic)
14	0809-0101-1000	1	Motor, 12V
14	0809-0103-1000	1	Motor, 24V
15	0991-0004-1000	4	#8-32 Hex Nut (Stainless)

Options

Item	Part Number	Qty	Description
15	0809-0173-1000	2	Replaceable Brushes for Motor (Not Shown)
	0750-1011-1000	1	Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Dimensional Drawings

Please Contact us for 3D drawings and drawings of pumps with alternative motors.

Motor Information

0809-0101-1000 Motor
9″ Leads
12V, 3.5 AMPS, 3650 RPM, 0.04HP / 0.029kW
Voltage Range 0-14V

0809-0103-1000 Motor
9″ Leads
24V, 1.8 AMPS, 3650 RPM, 0.04HP / 0.029kW
Voltage Range 0-26V

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the 809-SS-HS-C 12V & 24V Magnetic Drive Pump include hot water systems and solar heating.

Great for Chemicals Including

The 809-SS-HS-C 12V & 24V has pumped Cutting Oils, Ethylene Glycol, Hot Water and Salt Water. The 809-SS-HS-C 12V & 24V may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 809-SS-HS-C 12V & 24V. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial 809-SS-HS-C 12V & 24V is an American seal-less centrifugal magnetic drive pump ideal for applications such as hot water systems. It is capable of generating a maximum flow of 8 gallons per minute at 2 feet, and its maximum head is 15.5 Feet (6.5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 0.75 inch male pipe thread, and the outlet is 0.5 inch male pipe thread. The standard motor is a 0.04 Horsepower DC Brush Type Motor, available in 12 or 24 Volts. The 12 Volt motor has an operating range from 0 to 14 Volts, and the 24 Volt motor has an operating range from 0 to 26 Volts. The maximum internal pressure the pump can tolerate is 150PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 809-SS-HS-C 12V & 24V is suitable for your application, please contact March Pump.
