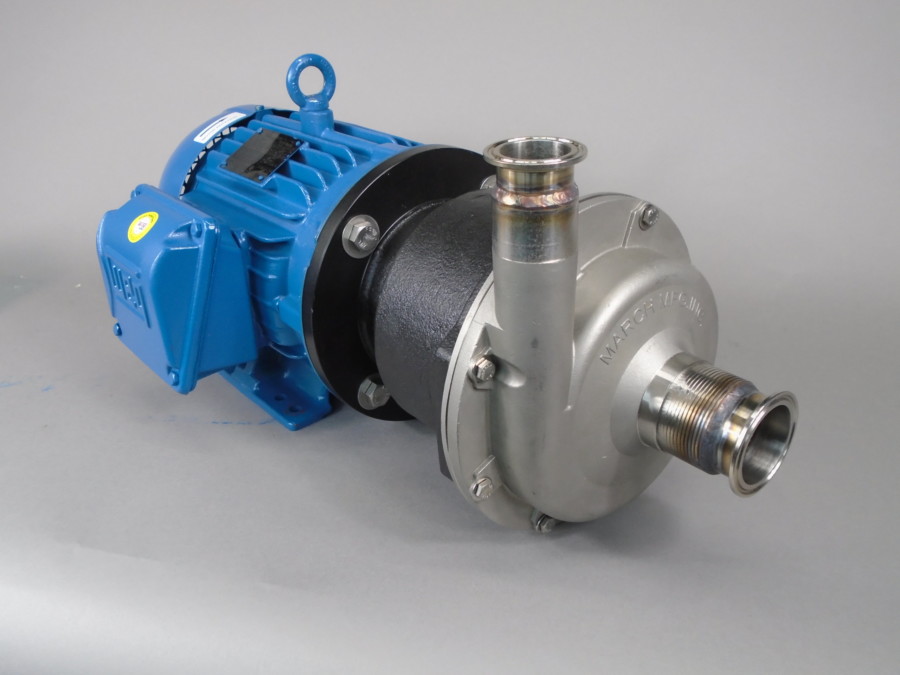

March Pump’s industrial TE-8SSB-MD is an American seal-less centrifugal magnetic drive pump ideal for brewing applications. It has two washdown motor options, tri clamp fittings, and is capable of generating a maximum flow of 120 gallons per minute at 20 feet, and its maximum head is 90 Feet (39PSI).
| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 120 GPM | 454 LPM |
| Max Head | 90 FT | 27.4 M |
| Power | 5 HP | 3.7 KW |
| 50Hz | |
|---|---|
| US | Metric |
| 105 GPM | 400 LPM |
| 63 FT | 19.3 M |
| 5 HP | 3.7 KW |
- Wet End: 316 Stainless Steel (Front and Rear Housing), Glass Filled Kynar (Impeller) Viton (O-Ring), Ceramic (Shaft, Thrust Washers) Carbon (Bushing)
- Motor Options: 3450RPM 3Ph SS IP66 Washdown or 1750RPM 3Ph SS IP66 Washdown
- Max Internal Pressure: 200 PSI / 13.78 bar
- Max Liquid Temperature: 225 °F / 107 °C
- Materials are FDA Food Compliant: Components are UL Recognized. Motors have UL File Numbers
Pump Curves & General Installation Sheets
Part Numbers
Dimensional Drawings
Motor Information
Great for Chemicals Including
The TE-8SSB-MD Beer Pump has pumped Hot Water and Hot Wort. The TE-8SSB-MD Beer Pump may have to modified to handle other chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-8SSB-MD Beer Pump.
Summary Paragraph
March Pump’s industrial TE-8SSB-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 20 feet, and its maximum head is 90 Feet (39PSI), with the 3450RPM motor. The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Kynar, Viton, Carbon, and Ceramic. The inlet connection is 2 inch sanitary fitting, and the outlet is 1-1/2 inch sanitary fitting. There are two standard motors. The first is a 3Ph 208/230/460V 60Hz and 190/380V 50Hz 5HP 3450RPM IP66 SS Washdown motor. The second is a 3Ph 208/230/460V 60Hz and 190/380V 50Hz 3HP 1750RPM IP66 SS Washdown motor, which will only draw approximately 0.5HP. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 225 Fahrenheit or 107 Celsius. The March TE-8SSB-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8SSB-MD is suitable for your application, please contact March Pump.
