TE-8K-MD-HF Magnetically Coupled Pump

Perfect for Applications Including

Applications for the TE-8K-MD-HF Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.

Great for Chemicals Including

The TE-8K-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-8K-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-8K-MD. Chemical Resistance Chart

Summary Paragraph

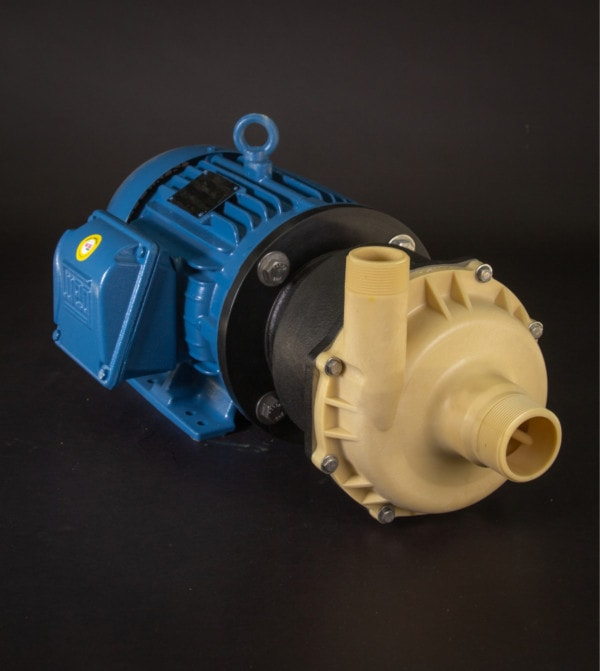

March Pump’s industrial TE-8K-MD-HF is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 150 gallons per minute at 15 feet, and its maximum head is 95 Feet (41PSI). The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar (PVDF), Viton, Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. The standard motor is a 3 Phase 60 hertz 208/230/460 and 50 hertz 190/220/380V 5 horsepower totally enclosed fan cooled motor. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-8K-MD-HF centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8K-MD-HF is suitable for your application, please contact March Pump.
