| System | US | Metric |
| Max Flow | 97 GPM | 367 LPM |
| Max Head | 63 FT | 19.2 M |
| Power | 5 HP | 3.72 KW |
- Wet End: Glass filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
- Max Internal Pressure: 75 PSI / 5.1 bar
- Max Liquid Temperature: 200 °F / 93 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the TE-8K-MD-AM Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.
Great for Chemicals Including
The TE-8K-MD-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-8K-MD-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-8K-MD-AM. Chemical Resistance Chart
Summary Paragraph

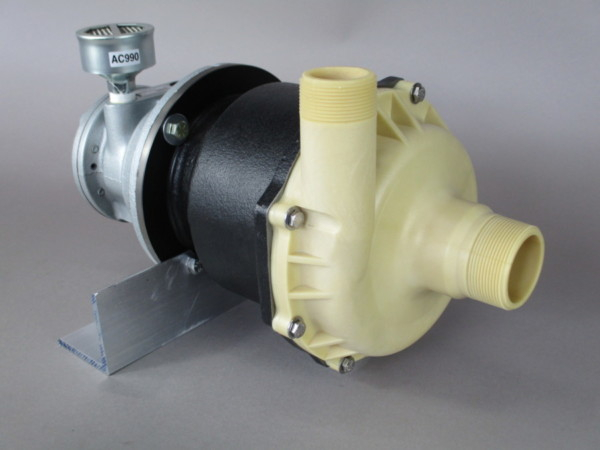

March Pump’s industrial TE-8K-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 97 gallons per minute at 8 feet, and its maximum head is 63 Feet (27PSI). The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar (PVDF), Viton, Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. The standard motor is a Compressed Air Motor which may require 65 PSI and 125 CFM. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-8K-MD-AM centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8K-MD-AM is suitable for your application, please contact March Pump.
