Perfect for Applications Including
Applications for the TE-8C-MD-HF Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.
Great for Chemicals Including
The TE-8C-MD-HF has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-8C-MD-HF may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-8C-MD-HF. Chemical Resistance Chart
Summary Paragraph

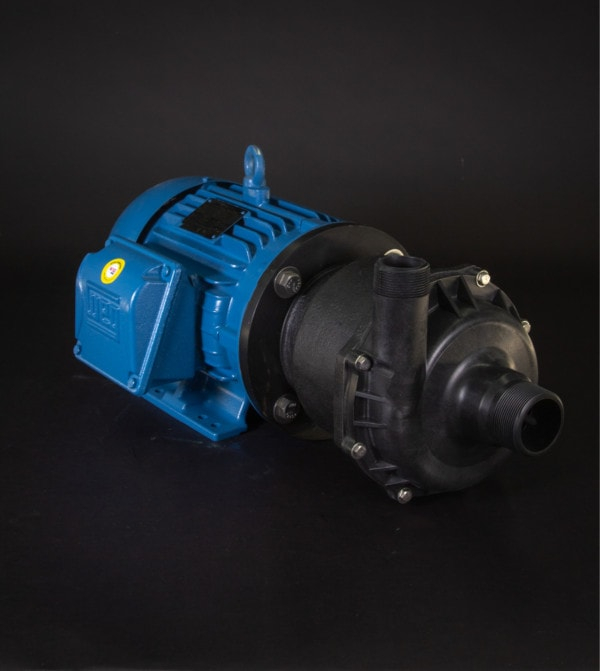

March Pump’s industrial TE-8C-MD-HF is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 150 gallons per minute at 15 feet, and its maximum head is 95 Feet (41PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, carbon filled Polypropylene, Viton, Teflon/Ryton/Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. The standard motor is a 3 Phase 60 hertz 208/230/460 and 50 hertz 190/220/380V 5 horsepower totally enclosed fan cooled motor. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-8C-MD-HF centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8C-MD-HF is suitable for your application, please contact March Pump.
