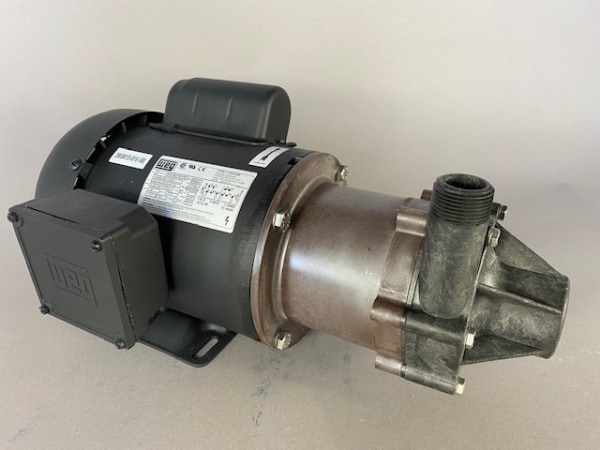

EnglishTE-7KC-MD 1&3 Ph Magnetic Drive Pump
| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 53 GPM | 200 LPM |
| Max Head | 60 FT | 18.3 M |
| Power | 1 HP | 0.746 KW |
| Unit | 50Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 47.5 GPM | 180 LPM |
| Max Head | 40.3 FT | 12.3 M |
| Power | 1 HP | 0.746 KW |
- Wet End: Carbon Filled Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
- Additional Motor Options: Available in 1HP, 1.5HP, 1HP Explosion Proof, 1.5HP Explosion Proof, or Washdown
- Max Internal Pressure: 75 PSI / 5.1 bar
- Max Liquid Temperature: 200 °F / 93 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
| P/N | Pump Description | Modified With |
|---|---|---|
| 0155-0336-0100 | TE-7KC-MD 1 Phase 1HP Pl Bracket | Standard |
| 0155-0336-0200 | TE-7KC-MD 3 Phase 1HP Pl Bracket | Standard |
| The below are modified TE-7KC-MD's |
Parts Breakdown
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 0155-0336-0100 | 1 | TE-7K-MD, 1Phase, 1HP, Complete Standard Pump | |
| 0155-0336-0200 | 1 | TE-7K-MD, 3 Phase, 1HP, Complete Standard Pump | |
| 1 | 0155-0014-1000 | 6 | 1/4"-20 x 2" Long Screw (Stainless) |
| 2 | 0155-0021-1000 | 6 | 1/4" ID x 1/2" OD Washer (Stainless) |
| 3 | 1235-0009-1000 | 1 | Front Housing (Carbon Filled Kynar) |
| 4 | 0155-0010-1000 | 1 | 1/8" CS x 4-3/8" OD "O" Ring (Viton) |
| 5 | 0155-0009-1000 | 1 | Thrust Washer (Ceramic) |
| 6 | 0155-0039-1000 | 1 | 4.070" Long Shaft (Ceramic) |
| 7 | 1235-0007-0100 | 1 | Impeller w/Carbon Bushing (Carbon Filled Kynar) |
| 8 | 1235-0008-0100 | 1 | Rear Housing w/Ceramic Thrust Washer (Carbon Filled Kynar) |
| 9 | 0155-0130-0200 | 1 | Drive Magnet |
| 10 | 0155-0092-0100 | 1 | Motor Bracket (Plastic) |
| 11 | 0155-0017-1000 | 4 | 3/8”-16 x 3/4” Long Screw (Stainless) |
| 12 | 0155-0019-1000 | 4 | 3/8” ID x 5/8” OD Washer (Stainless) |
| 13 | 0155-0173-1000 | 1 | Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz, 1 HP |
| 14 | 0155-0174-1000 | 1 | Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 1 HP |
Options
| Item | Part Number | Qty | Description |
|---|---|---|---|
| 4 | 0155-0071-1000 | 1 | 1/8" CS x 4-3/8" OD "O" Ring (Teflon Encapsulated Viton) |
| 4 | 0155-0105-1000 | 1 | 1/8" CS x 4-3/8" OD "O" Ring (EPDM) |
| 5 | 0155-0084-1000 | 1 | Thrust Washer (Hastelloy "C") |
| 5 | 0155-0149-1000 | 1 | Thrust Washer (Silicon Carbide) |
| 5 | 0155-0233-1000 | 1 | Thrust Washer (Zirconium) |
| 6 | 0155-0146-1000 | 1 | 4.070" Long Shaft (Stainless) |
| 6 | 0155-0234-1000 | 1 | 4.070" Long Shaft (Hastelloy "C") |
| 7 | 1235-0007-0200 | 1 | Impeller w/Mica Teflon Bushing (Carbon Filled Kynar) |
| 10 | 0155-0092-0100 | 1 | Motor Bracket (Plastic) |
| 0155-0059-1000 | 1 | Motor, Explosion Proof, 1 Phase (Contact March For Additional Specs) | |
| 0155-0060-1000 | 1 | Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs) | |
| 1 | Motor, Washdown, 1 Phase (Contact March For Additional Specs) | ||
| 1 | Motor, Washdown, 3 Phase (Contact March For Additional Specs) | ||
| 0750-1011-1000 | 1 | Stainless Steel Tag w/Customer's Desired Information (Not Shown) | |
| Flanges (Not Shown) |
Dimensional Drawings
Motor Information
0155-0173-1000 Motor
Conduit Box, TEFC, IP55
60Hz: 1Ph 1 HP / 0.75 kW, 115-208/230V, 12.6-6.3/6.2 AMPS, 3450RPM
50Hz: 1Ph 1 HP / 0.75 kW, 110/220V, 14.3/7.1 AMPS, 2850RPM
0155-0174-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 1 HP / 0.75 kW, 208-230/460V, 3.3-3.1/1.5 AMPS, 3450RPM
50Hz: 3Ph 1 HP / 0.75 kW, 190/380V, 3.3/1.7 AMPS, 2850RPM (Usable at 220/415V)
Perfect for Applications Including
Applications for the TE-7KC-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, silver recovery systems, and marine air conditioners.
Great for Chemicals Including
The TE-7KC-MD is intended to pump chemicals which attack glass. These include Fluosilicic, Hexaflurosilicic, and Hydrofluoric The TE-7KC-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7KC-MD. Chemical Resistance Chart Kynar Carbon Filled
Summary Paragraph
March Pump’s industrial TE-7KC-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 60 Feet (26PSI). The standard wet end (the materials that come into contact with the solution) is composed of carbon filled Kynar (PVDF), Viton, Carbon, and Ceramic. The inlet connection is 1-1/2 inch female pipe thread, and the outlet is 1 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/208/230V and 50 hertz 110/220V 1 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60 hertz 208/230/460V and 50 hertz 190/380V 1 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-7KC-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7KC-MD is suitable for your application, please contact March Pump.
