TE-7.5K-MD Magnetic Drive Pump

TE-7.5K-MD Magnetic Drive Pump

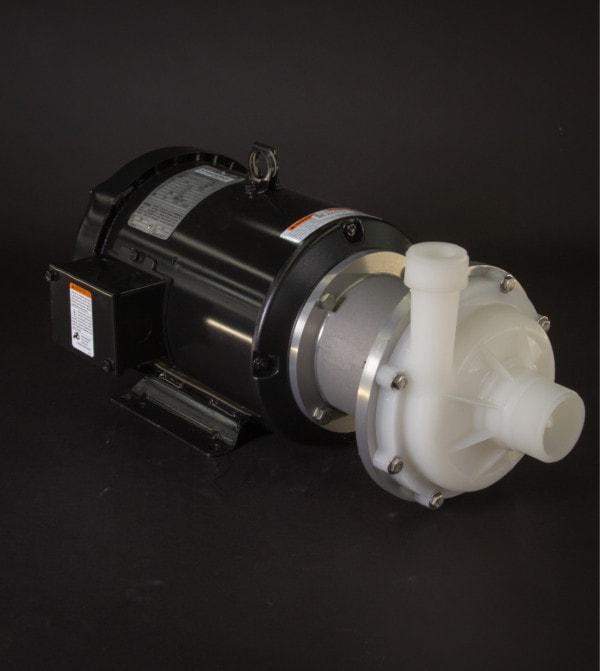

Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial TE-7.5K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and deionized water systems. It is capable of generating a maximum flow of 82 gallons per minute at 40 feet, and its maximum head is 85 Feet (37PSI).

Unit60Hz
SystemUSMetric
Max Flow82 GPM310 LPM
Max Head85 FT26 M
Power2 HP1.49 KW

Unit50Hz
SystemUSMetric
Max Flow71 GPM268 LPM
Max Head59 FT18 M
Power2 HP1.49 KW

Electrical/Air: 1Ph 115/208/230V 60Hz & 100/200V 50Hz, or 3Ph 230/460V 60Hz & 190/380V 50Hz, or 3Ph 575V 60Hz
Inlet: 2"MPT
Outlet: 1-1/2"MPT
  • Wet End: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
  • Max Internal Pressure: 60 PSI / 4.1 bar
  • Max Internal Temperature: 190 °F / 87 °C
  • Motor Options: Available in Explosion Proof and 575V Motor
  • Note: Product image may be different than actual product received.

Part Numbers


P/NPump DescriptionModified With
0156-0001-0200TE-7.5K-MD 1Ph 2HP with Metal Motor BracketStandard
0156-0111-0100TE-7.5K-MD 3Ph 2HP with Metal Motor Bracket, Weg Standard
0156-0093-0100TE-7.5K-MD 3Ph 2HP with Metal Motor Bracket, NAEStandard
0156-0001-0300TE-7.5K-MD 3Ph Explosion Proof 2HP with Metal Motor BracketStandard
0156-0001-0600TE-7.5K-MD 3Ph 575V 2HP with Metal Motor BracketStandard
 The below are modified TE-7.5K-MD's with Metal Motor Bracket
0156-0001-0212TE-7.5K-MD 1Ph 2HP with Metal Motor BracketTeflon O-Ring
0156-0111-0112TE-7.5K-MD 3Ph 2HP with Metal Motor Bracket, Weg Teflon O-Ring
0156-0093-0112TE-7.5K-MD 3Ph 2HP with Metal Motor Bracket, NAETeflon O-Ring
0156-0001-0312TE-7.5K-MD 3Ph Explosion Proof 2HP with Metal Motor BracketTeflon O-Ring
0156-0001-0612TE-7.5K-MD 3Ph 575V 2HP with Metal Motor BracketTeflon O-Ring
0156-0001-0232TE-7.5K-MD 1Ph 2HP with Metal Motor BracketMica Teflon Bushing
0156-0111-0132TE-7.5K-MD 3Ph 2HP with Metal Motor Bracket, Weg Mica Teflon Bushing
0156-0093-0132TE-7.5K-MD 3Ph 2HP with Metal Motor Bracket, NAEMica Teflon Bushing
0156-0001-0332TE-7.5K-MD 3Ph Explosion Proof 2HP with Metal Motor BracketMica Teflon Bushing
0156-0001-0632TE-7.5K-MD 3Ph 575V 2HP with Metal Motor BracketMica Teflon Bushing

P/NPump DescriptionModified With
0156-0083-0100TE-7.5K-MD 1Ph 2HP with Plastic Motor BracketStandard
0156-0112-0100TE-7.5K-MD 3Ph 2HP with Plastic Motor Bracket, Weg Standard
0156-0099-0100TE-7.5K-MD 3Ph 2HP with Plastic Motor Bracket, NAEStandard
 The below are modified TE-7.5K-MD's with Plastic Motor Bracket
0156-0083-0112TE-7.5K-MD 1Ph 2HP with Plastic Motor BracketTeflon O-Ring
0156-0112-0112TE-7.5K-MD 3Ph 2HP with Plastic Motor Bracket, Weg Teflon O-Ring
0156-0099-0112TE-7.5K-MD 3Ph 2HP with Plastic Motor Bracket, NAETeflon O-Ring
0156-0083-0132TE-7.5K-MD 1Ph 2HP with Plastic Motor BracketMica Teflon Bushing
0156-0112-0132TE-7.5K-MD 3Ph 2HP with Plastic Motor Bracket, Weg Mica Teflon Bushing
0156-0099-0132TE-7.5K-MD 3Ph 2HP with Plastic Motor Bracket, NAEMica Teflon Bushing

Parts Breakdown

Parts Image

ItemPart NumberQtyDescription
 0156-0001-02001TE-7.5K-MD, 1 Phase, Complete Standard Pump
 0156-0111-01001TE-7.5K-MD, 3 Phase, Complete Standard Pump
10153-0011-100081/4"-20 x 1-1/2" Long Screw (Stainless)
20157-0023-100081/4" ID x 5/8" OD Washer (Stainless)
30156-0001-10001Front Housing with 2” FPT Inlet & 1-1/2" MPT Outlet (Natural Kynar)
40156-0010-100010.157” CS x 6.457” ID “O” Ring (Viton)
50156-0016-10002Front & Rear Thrust Washer (Ceramic)
60156-0007-10001Shaft (Ceramic)
70156-0004-02001Impeller with Carbon Bushings (Natural Kynar)
80156-0002-10001Rear Housing (Natural Kynar)
90156-0009-01001Drive Magnet
100156-0073-00101Motor Bracket (Aluminum)
110156-0053-100081/4"-20 Hex Nut (Stainless)
120155-0017-100043/8"-16 x 1" Long Screw (Stainless)
130155-0019-100043/8" ID x 5/8" OD Washer (Stainless)
140156-0110-10001Motor, TEFC, 3 Phase, 230/460 V, 50/60 Hz, 2 HP
150156-0022-10001Motor, TEFC, 1 Phase, 115/230 V, 50/60 Hz, 2 HP
WEK0156-0031-01001Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8)
PLM0156-0051-01001Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13)

Options

Options Image

ItemPart NumberQtyDescription
40156-0023-100010.157” CS x 6.457” ID “O” Ring (Teflon Encapsulated Viton)
40156-0034-100010.157” CS x 6.457” ID “O” Ring (EPDM)
50156-0037-10002Front & Rear Thrust Washer (Silicon Carbide)
60156-0036-10001Shaft (Silicon Carbide)
60156-0043-10001Shaft, 3 Flats (Ceramic)
70156-0004-03001Impeller with Mica Teflon Bushings (Natural Kynar)
70156-0004-05001Impeller with Silicon Carbide Bushings (Natural Kynar)
70156-0004-06001Impeller with Ryton Bushings (Natural Kynar)
100156-0041-10001Motor Bracket (Plastic)
 0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0156-0022-1000 Motor (Marathon)
Conduit Box, TEFC, IP43
60Hz: 1Ph 2HP / 1.5 kW, 115 / 230V, 22 / 11 AMPS, 3450RPM (Usable at 208V)
50Hz: 1Ph 1.5HP / 1.1 kW, 100 / 200V, 20 / 10 AMPS, 2850RPM

0156-0110-1000 Motor (Weg)
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 2 HP / 1.5 kW, 230/460V, 4.94 /2.47 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 2 HP / 1.5 kW, 190/ 380V, 5.94 / 2.97 AMPS, 2850 RPM (Usable at 190-220 / 380-415V)

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-7.5K-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, microchip manufacturing, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, silver recovery systems, and marine air conditioners.

Great for Chemicals Including

The TE-7.5K-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-7.5K-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7.5K-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-7.5K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and deionized water systems. It is capable of generating a maximum flow of 82 gallons per minute at 40 feet, and its maximum head is 85 Feet (37PSI). The standard wet end (the materials that come into contact with the solution) is composed of natural Kynar, Viton, Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/208/230V and 50 hertz 100/200V 2 horsepower totally enclosed fan cooled motor. The second is a Weg 3 Phase 60 hertz 230/460V and 50 hertz 190/380V 2 horsepower totally enclosed fan cooled motor.

There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 60PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-7.5K-MD centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7.5K-MD is suitable for your application, please contact March Pump.
