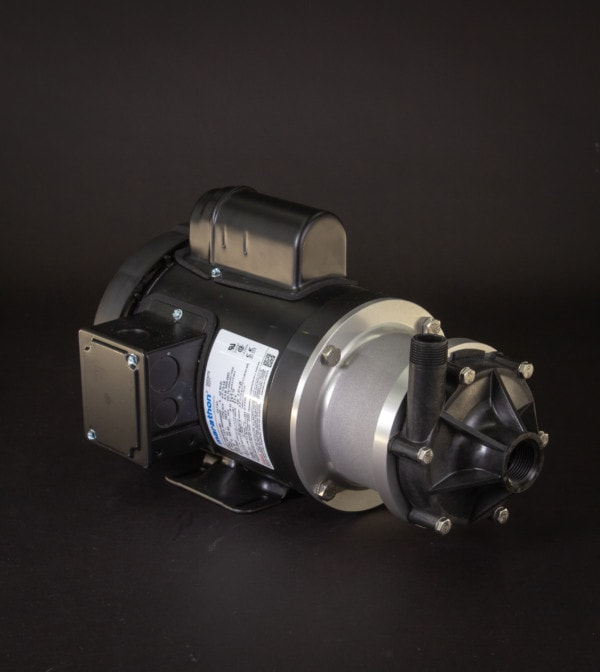

March Pump’s industrial TE-6T-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 38 gallons per minute at 10 feet, and its maximum head is 49 Feet (21PSI).
| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 38 GPM | 144 LPM |
| Max Head | 49 FT | 15 M |
| Power | 0.5 HP | 0.372 KW |
| 50Hz | |
|---|---|
| US | Metric |
| 30 GPM | 113.5 LPM |
| 36 FT | 11 M |
| 0.375 HP | 0.279 KW |
- Wet End: Polypropylene (Impeller), Ryton (Front Housing, Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Ryton/Teflon/Carbon (Bushing)
- Additional Motor Options: Available in 1HP Explosion Proof and Washdown
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the TE-6T-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, bicarbonate systems, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, silver recovery systems, and marine air conditioners.
Great for Chemicals Including
The TE-6T-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-6T-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-6T-MD. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial TE-6T-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 38 gallons per minute at 10 feet, and its maximum head is 49 Feet (21PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Ryton, Viton, Ryton/Teflon/Carbon, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 3/4 inch male pipe thread.There are two standard motors. The first is a 1 Phase 60 hertz 115/208/230V and 50 hertz 115/230V 0.5 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60 hertz 208/230/460V and 50 hertz 230/460V 0.5 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-6T-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-6T-MD is suitable for your application, please contact March Pump.
