TE-5.5S-MD 1&3 Ph Mag Drive Pump

TE-5.5S-MD 1&3 Ph Mag Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial TE-5.5S-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 30 gallons per minute at 11 feet, and its maximum head is 41 Feet (18PSI).

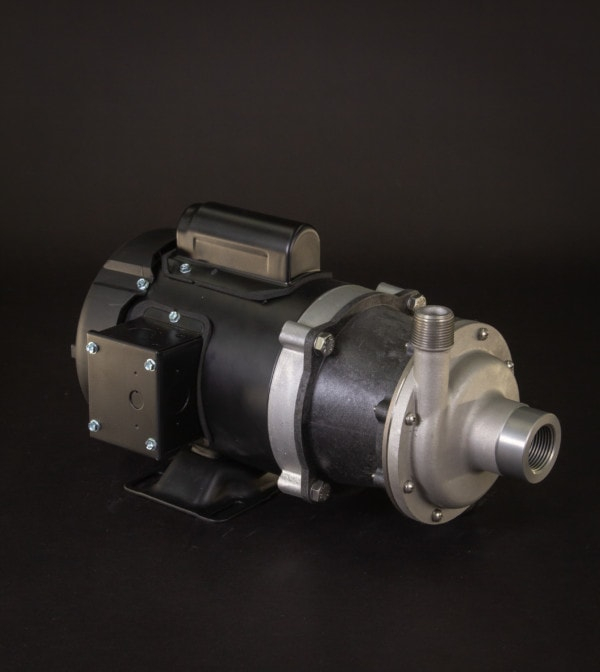

March Pump’s TE-5.5K-MD centrifugal sealless magnetic drive pumps constructed from 316 Stainless Steel ideal for chemical applications. Enlarge Image
Unit60Hz
SystemUSMetric
Max Flow30 GPM 114 LPM
Max Head41 FT12.5 M
Power0.33 HP0.25 KW
Unit50Hz
SystemUSMetric
Max Flow27 GPM102 LPM
Max Head29.5 FT9 M
Power0.33 HP0.25 KW
Electrical/Air: 1Ph 115/208/230V 60Hz & 115/230V 50Hz or 3Ph 230/460V 60Hz & 190/220/380/415V 50Hz, or 3Ph 575V 60Hz
Inlet: 1"FPT
Outlet: 3/4"MPT
  • Wet End: 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
  • Additional Motor Options: Available in Explosion Proof or Washdown
  • Max Internal Pressure: 200 PSI / 13.8 bar
  • Max Liquid Temperature: 250 °F / 121 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0151-0002-0100TE-5.5S-MD 1 Phase 0.33HP Standard
0151-0002-0400TE-5.5S-MD 3 Phase 0.33HP Standard
0151-0002-0300TE-5.5S-MD 1 Phase Explosion Proof 0.33HPStandard
0151-0002-0500TE-5.5S-MD 3 Phase Explosion Proof 0.33HPStandard
0151-0002-0900TE-5.5S-MD 3 Phase 575V 0.33HPStandard
The below are modified TE-5.5S-MD's
0151-0002-0112TE-5.5S-MD 1 Phase 0.33HP Teflon O-Ring
0151-0002-0412TE-5.5S-MD 3 Phase 0.33HP Teflon O-Ring
0151-0002-0312TE-5.5S-MD 1 Phase Explosion Proof 0.33HPTeflon O-Ring
0151-0002-0512TE-5.5S-MD 3 Phase Explosion Proof 0.33HPTeflon O-Ring
0151-0002-0912TE-5.5S-MD 3 Phase 575V 0.33HPTeflon O-Ring
0151-0002-0132TE-5.5S-MD 1 Phase 0.33HP Mica Teflon Bushing
0151-0002-0432TE-5.5S-MD 3 Phase 0.33HP Mica Teflon Bushing
0151-0002-0532TE-5.5S-MD 3 Phase Explosion Proof 0.33HPMica Teflon Bushing
0151-0002-0332TE-5.5S-MD 1 Phase Explosion Proof 0.33HPMica Teflon Bushing
0151-0002-0932TE-5.5S-MD 3 Phase 575V 0.33HPMica Teflon Bushing

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0151-0002-01001TE-5.5S-MD 1 Phase Complete Standard Pump
0151-0002-04001TE-5.5S-MD 3 Phase Complete Standard Pump
10135-0181-10008#10-32 x 1-1/8” Long Screw (Stainless)
20151-0016-10008#10 Lock Washer (Stainless)
30151-0002-00101Front Housing with 1” FPT Inlet & 3/4" MPT Outlet (316 Stainless)
40153-0015-100013/32" CS x 4-7/16” ID “O” Ring (Viton)
50155-0009-10001Thrust Washer (Ceramic)
60153-0007-10001Shaft (Ceramic)
70151-0001-04001Impeller w/Carbon Bushing (316 Stainless)
80151-0003-00101Rear Housing (316 Stainless)
90151-0061-02001Drive Magnet
100151-0090-01001Motor Bracket (Plastic)
110155-0017-100043/8"-16 x 3/4" Long Screw (Stainless)
120155-0019-100043/8" ID x 5/8" OD Washer (Stainless)
130151-0015-10001Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz
140151-0039-10001Motor, TEFC, 3 Phase, 230/460V 60 Hz (190/380V 50 Hz)
WEK0151-0099-01001Wet End Kit (Items: 1, 2, 3, 4, 5, 6 ,7, 8)
PLM0151-0102-1001Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12)

Options

Options Image
ItemPart NumberQtyDescription
30153-0025-100013/32" CS x 4-7/16” ID “O” Ring (EPDM)
30153-0107-100013/32" CS x 4-7/16" ID "O" Ring (Teflon)
40155-0084-10001Thrust Washer (Hastelloy "C")
40155-0149-10001Thrust Washer (Silicon Carbide)
40155-0233-10001Thrust Washer (Zirconium)
50153-0073-10001Shaft, 3 Flats (Ceramic)
70151-0001-08001Impeller with Mica Teflon Bushing (316 Stainless)
0151-0042-10001Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs)
0151-0023-10001Motor, Explosion Proof, 1 Phase (Contact March For Additional Specs)
1Motor, Washdown, 3 Phase (Contact March for Additional Specs)
1Motor, Washdown, 1 Phase (Contact March for Additional Specs)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)
Flanges (Not Shown)

Motor Information

0151-0015-1000 Motor
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.33HP / 0.25 kW, 115-208/230V, 4.4-2.4/2.2 AMPS, 3450 RPM
50Hz: 1Ph 0.33HP / 0.25kW, 115/230V, 4.4/2.2 AMPS, 2850 RPM

0151-0039-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 0.33HP / 0.25kW, 230/460V, 1.18/0.59 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 0.33HP / 0.25kW, 190-220/380-415V, 1.26-1.11/0.63-0.59 AMPS, 2850 RPM (Usable at 208V)

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-5.5S-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, silver recovery systems, and marine air conditioners.

Great for Chemicals Including

The TE-5.5S-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Potassium Chloride, Potassium Hydroxide, Sodium Chloride, Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, and many more chemicals. The TE-5.5S-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-5.5S-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-5.5S-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 30 gallons per minute at 11 feet, and its maximum head is 41 Feet (18PSI). The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Viton, Carbon, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 3/4 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/208/230V and 50 hertz 115/230V 0.33 horsepower totally enclosed fan cooled motor. Thes second is a 3 Phase 60 hertz 208/230/460V and 50 hertz 190/220/415V 0.33 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. The March TE-5.5S-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5.5S-MD is suitable for your application, please contact March Pump.
