TE-5.5K-MD-AC 1 Ph Mag Drive Pump

Perfect for Applications Including

Applications for the TE-5.5K-MD-AC Magnetic Drive Pump include chemical recirculation, chemical transfer, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, silver recovery systems, and marine air conditioners.

Great for Chemicals Including

The TE-5.5K-MD-AC has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-5.5K-MD-AC may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-5.5K-MD-AC. Chemical Resistance Chart

Summary Paragraph

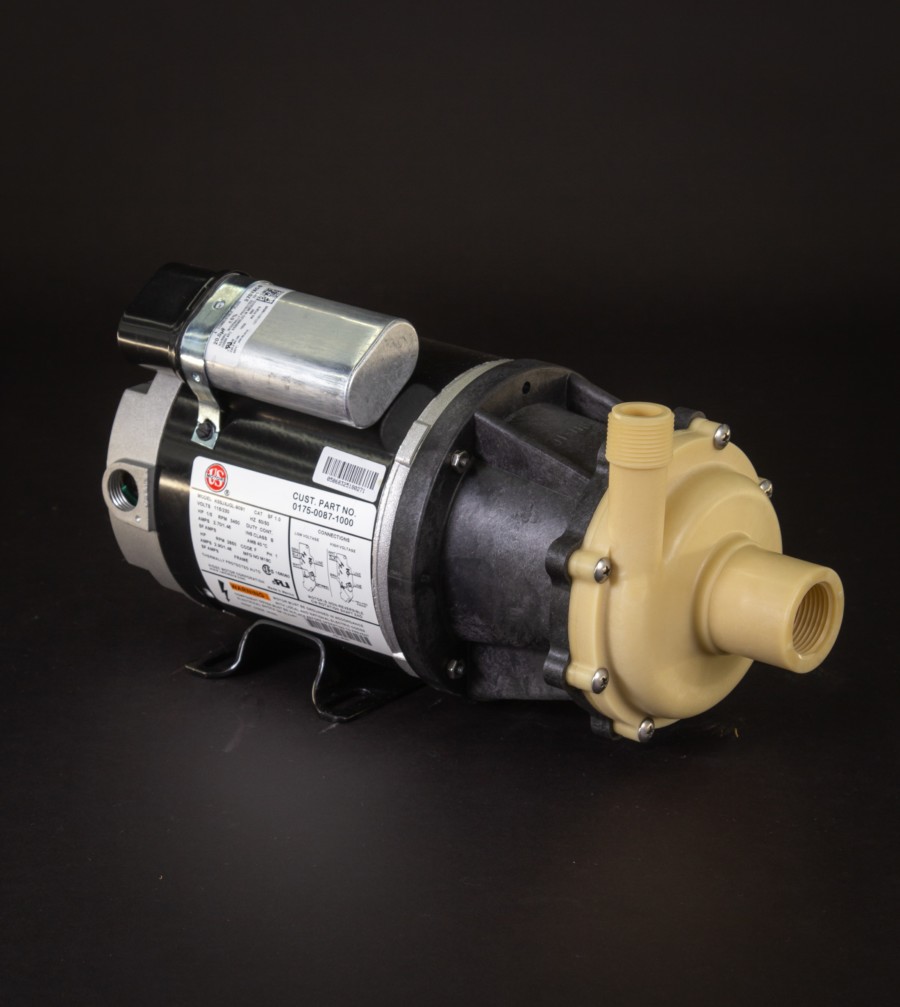

March Pump’s industrial TE-5.5K-MD-AC is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 30 gallons per minute at 11 feet, and its maximum head is 41 Feet (18PSI). The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar (PVDF), Viton, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 3/4 inch male pipe thread. The standard motor is a 1 Phase 115/230V 0.2 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-5.5K-MD-AC centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5.5K-MD-AC is suitable for your application, please contact March Pump.
