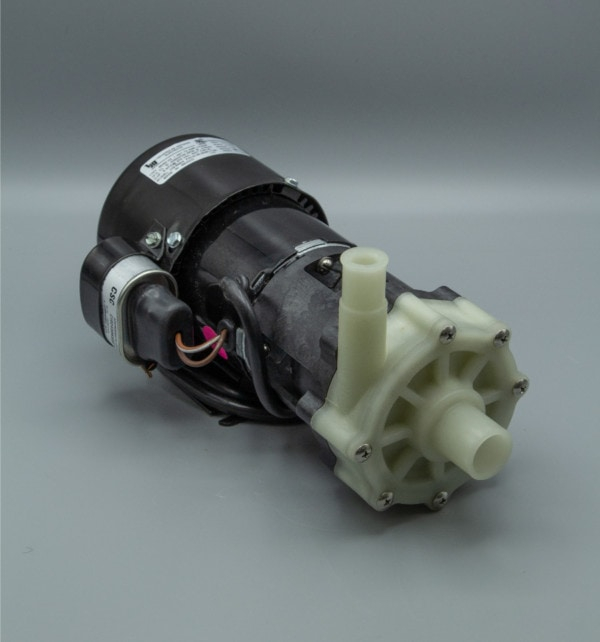

BC-4A-MD Magnetically Coupled Pump

BC-4A-MD Magnetically Coupled Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial BC-4A-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 14 gallons per minute at 1 feet, and its maximum head is 21.5 Feet (9PSI).

Unit60Hz
SystemUSMetric
Max Flow14 GPM 53 LPM
Max Head21.5 FT6.55 M
Power0.1 HP0.075 KW
Unit50Hz
SystemUSMetric
Max Flow13.2 GPM50 LPM
Max Head15.4 FT4.7 M
Power0.1 HP0.075 KW
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"OD
Outlet: 3/4"OD
  • Wet End: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)
  • Available with 750 Priming Chamber:
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 190 °F / 87 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0145-0048-0200BC-4A-MD 115V Standard
0145-0048-0100BC-4A-MD 230V Standard
The below are modified BC-4A-MD's

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0145-0048-02001BC-4A-MD, 1 Phase, 115V, Complete Standard Pump
0145-0048-01001BC-4A-MD 1 Phase, 230V, Complete Standard Pump
10150-0021-10007#8-32 x 1-3/4” Long. Screw (Stainless)
20150-0150-10001Cover with 1” OD Inlet (Polypropylene)
30750-0986-100010.078” CS x 2.834” ID “O” Ring (Viton)
40130-0028-10001Thrust Washer (Ceramic)
50130-0024-10001Shaft (Ceramic)
60145-0033-02001Encapsulated Impeller (Polypropylene)
70150-0159-01001Rear Housing with 3/4” OD Outlet & Thrust Washer (Polypropylene/Ceramic)
80145-0027-01001Drive Magnet
90145-0010-10001Motor Bracket (Plastic)
100618-0027-10004#8-32 x 5/8” Long Screw (Stainless)
110858-0004-10004#8 Flat Washer (Stainless)
120145-0035-10001Motor, 1 Phase, 115V, 50/60 Hz
120145-0036-10001Motor, 1 Phase, 230V, 50/60 Hz

Options

Options Image
ItemPart NumberQtyDescription
30150-0212-100010.078” CS x 2.893” ID “O” Ring (Teflon Encapsulated Viton)
30750-0053-100010.078" CS x 2.834" ID "O" Ring (EPDM)
50939-0003-10001Shaft (316SS)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0145-0035-1000
3 Foot Cord
60Hz: 1Ph 115V 0.1HP/0.075kW, 1.9 AMPS, 3450 RPM
50Hz: 1Ph 115V 0.1HP/0.075kW, 1.9 AMPS, 2850 RPM

0145-0036-1000
3 Foot Cord
60Hz: 1Ph 230V 0.083HP/0.062kW, 0.75 AMPS, 3450 RPM
50Hz: 1Ph 230V 0.083HP/0.062kW, 0.75 AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the BC-4A-MD Magnetic Drive Pump include electronic medical equipment, etching machines, photo processing equipment, hospital thermal blankets, and food heating cabinets.

Great for Chemicals Including

The BC-4A-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The BC-4A-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the BC-4A-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial BC-4A-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 14 gallons per minute at 1 feet, and its maximum head is 21.5 Feet (9PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 1 inch smooth, and the outlet is 3/4 inch smooth. The standard motor is a 1 Phase 115V or 230V 0.1 Horsepower blast cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March BC-4A-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March BC-4A-MD is suitable for your application, please contact March Pump.
