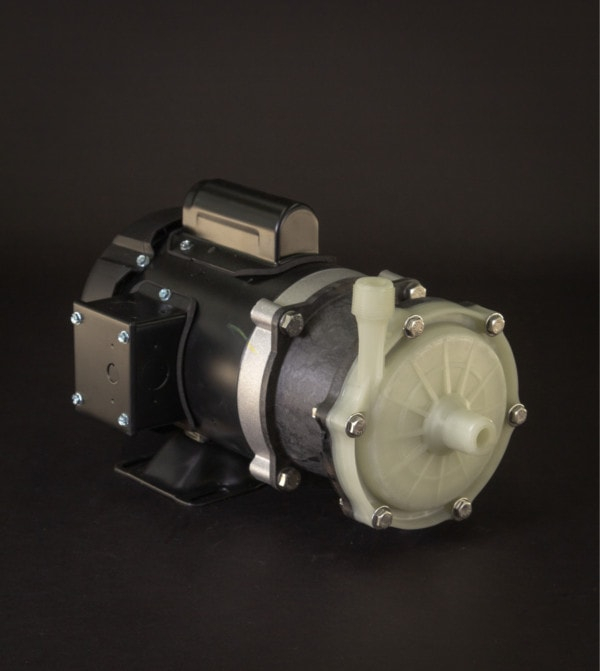

335-CP-MD 1&3 Ph Magnetic Drive Pump

Für eine größere Ansicht klicken Sie auf das Vorschaubild

Request Help
Pump Curves
Parts Breakdown

March Pump’s 335-CP-MD centrifugal sealless magnetic drive pumps constructed from Polypropylene ideal for low flow high head applications.

Unit	60Hz
System	US	Metric
Max Flow	12 GPM	45.4 LPM
Max Head	68 FT	20.7 M
Power	0.33 HP	0.249 KW

Unit	50Hz
System	US	Metric
Max Flow	10 GPM	37.8 LPM
Max Head	47.9 FT	14.6 M
Power	0.33 HP	0.249 KW

Electrical/Air: 1Ph 115/230V 60Hz, 115/230V 50Hz or 3Ph 230/460V 60Hz, 190/220/380/415 50Hz

Inlet: 3/4"MPT

Outlet: 3/4"MPT

Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft and Thrust Washer)
Additional Motor Options: Available in Explosion Proof or Washdown
Max Internal Pressure: 50PSI/3.4bar
Max Liquid Temperature: 190 °F / 87 °C
Note: Product image may be different than actual product received.

Pump Curves & General Installation Sheets

Part Numbers

P/N	Pump Description	Modified With
0335-0001-0100	335-CP-MD 1 Phase 1/3HP	Standard
0335-0001-0200	335-CP-MD 3 Phase 1/3HP	Standard
0335-0001-0500	335-CP-MD 1 Phase Explosion Proof	Standard
0335-0001-0600	335-CP-MD 3 Phase Explosion Proof	Standard
	The below are modified 335's
0335-0001-0113	335-CP-MD 1 Phase 1/3HP	EPDM O-Ring
0335-0001-0213	335-CP-MD 3 Phase 1/3HP	EPDM O-Ring
0335-0001-0513	335-CP-MD 1 Phase Explosion Proof	EPDM O-Ring
0335-0001-0612	335-CP-MD 3 Phase Explosion Proof	EPDM O-Ring
0335-0001-0112	335-CP-MD 1 Phase 1/3HP	Teflon O-Ring
0335-0001-0212	335-CP-MD 3 Phase 1/3HP	Teflon O-Ring
0335-0001-0512	335-CP-MD 1 Phase Explosion Proof	Teflon O-Ring
0335-0001-0612	335-CP-MD 3 Phase Explosion Proof	Teflon O-Ring

Parts Breakdown

Item	Part Number	Qty	Description
	0335-0001-0100	1	335-CP-MD, 1 Phase, Complete Standard Pump
	0335-0001-0200	1	335-CP-MD, 3 Phase, Complete Standard Pump
1	0153-0011-1000	6	1/4"-20 x 1-1/2" Long Screw (Stainless)
2	0157-0023-1000	6	1/4" ID x 5/8" OD Washer (Stainless)
3	0335-0002-1000	1	Front Housing with 3/4" MPT Inlet & Outlet (Polypropylene)
4	0335-0009-1000	1	1/8" CS x 5" ID "O" Ring (Viton)
5	0821-0079-1000	1	Thrust Washer (Ceramic)
6	0130-0024-1000	1	Shaft (Ceramic)
7	0335-0005-0200	1	Impeller (Polypropylene)
8	0335-0004-0100	1	Rear Housing with Ceramic Thrust Washer (Polypropylene)
9	0335-0017-0000	1	Drive Magnet (0.375 Inch Bore)
10	0155-0017-1000	4	3/8"-16 x 3/4" Long Screw (Stainless)
11	0155-0019-1000	4	3/8" ID x 5/8" OD Washer (Stainless)
12	0335-0010-1000	1	Motor Bracket (Plastic)
13	0156-0053-1000	6	1/4"-20 Hex Nut
14	0151-0015-1000	1	Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz
14	0151-0039-1000	1	Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz

Options

Item	Part Number	Qty	Description
4	0335-0013-1000	1	1/8" CS x 5" OD (EPDM)
4	0335-0016-1000	1	1/8" CS x 5" OD (Teflon Encapsulated Viton)
7	0335-0005-0400	1	Impeller with Carbon Bushing (Polypropylene)
	0151-0023-1000	1	Motor, Explosion Proof, 1 Phase (Contact March For Additional Specs)
	0151-0042-1000	1	Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs)
		1	Motor, Washdown, 1 Phase (Contact March For Additional Specs)
		1	Motor, Washdown, 3 Phase (Contact March For Additional Specs)
	0750-1011-1000	1	Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Dimensional Drawings

Please Contact us for 3D drawings and drawings of pumps with alternative motors.

Motor Information

0151-0015-1000 Motor
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.33HP / 0.25kW, 115-208/230V, 4.4-2.4/2.2 AMPS, 3450RPM
50Hz: 1Ph 0.33HP / 0.25kW, 115/230V, 4.4/2.2 AMPS, 2850RPM

0151-0039-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 0.33HP / 0.25kW, 230/460V, 1.18/0.59 AMPS, 3450RPM (Usable at 208V)
50Hz: 3Ph 0.33HP / 0.25kW, 190-220/380-415V, 1.26-1.11/0.63-0.59 AMPS, 2850RPM (Usable at 208V)

Please contact us for alternative motor data

Perfect for Applications Including

The 335-CP-MD has the durability for continuous duty in applications requiring low flow and high head. Typical applications include laser cooling, medical systems, filter systems, and various processing equipment in the electronics industry.

Great for Chemicals Including

The 335-CP-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The 335-CP-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 335-CP-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial 335-CP-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 12 gallons per minute at 1 foot, and its maximum head is 68 Feet (29PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 3/4 inch male pipe thread, and the outlet is 3/4 inch male pipe thread. The standard motor is a 1 Phase 115/230V or 3 Phase 230/460V 0.33 Horsepower totally enclosed fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March 335-CP-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March 335-CP-MD is suitable for your application, please contact March Pump.
