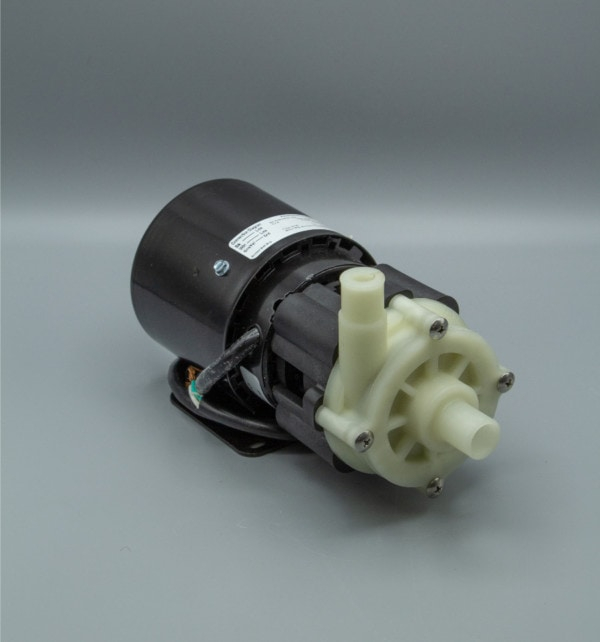

AC-3AP-MD Magnetic Drive Pump

AC-3AP-MD Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial AC-3AP-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 10 gallons per minute at 1 feet, and its maximum head is 20.5 Feet (9PSI).

Unit60Hz
SystemUSMetric
Max Flow10 GPM 37.8 LPM
Max Head20.5 FT6.25 M
Power0.06 HP0.04 KW
Unit50Hz
SystemUSMetric
Max Flow8.7 GPM33 LPM
Max Head14.7 FT4.5 M
Power0.06 HP0.04 KW
Electrical/Air: 115V 60Hz or 230V 50/60Hz
Inlet: 3/4"OD
Outlet: 1/2"OD
  • Wet End: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washer), Ceramic Magnet
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 190 °F / 87 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0130-0103-0100AC-3AP-MD 115VStandard
0130-0103-0200AC-3AP-MD 230V Standard
The below are modified AC-3AP-MD's

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0130-0103-01001AC-3AP-MD, 1 Phase, 115V, Complete Standard Pump
0130-0103-02001AC-3AP-MD, 1 Phase, 230V, Complete Standard Pump
10823-0008-10004#10-32 x 1-1/2” Long Screw (Stainless)
20130-0064-10001Cover with 3/4” OD Inlet (Polypropylene)
30130-0011-100013/32” CS x 2-13/16” OD Cover “O” Ring (Buna N)
40130-0028-10001Thrust Washer (Ceramic)
50130-0024-10001Shaft (Ceramic)
60130-0020-01001Impeller with Bare Ceramic Magnet (Polypropylene)
70130-0102-10001Rear Housing with 3/4” OD Outlet (Polypropylene)
80130-0043-02001Drive Magnet
90130-0066-01001Motor Bracket (Plastic)
100618-0027-10004#8-32 x 5/8” Long Screw (Stainless)
110140-0014-10004#8 Lock Washer (Steel)
120130-0022-10001Motor, 1 Phase, 115V, 60 Hz,
120130-0049-12001Motor, 1 Phase, 230V 50/60 Hz,

Options

Options Image
ItemPart NumberQtyDescription
30130-0033-100013/32” CS x 2-13/16” OD Cover “O” Ring (Viton)
30130-0121-100013/32” CS x 2-13/16” OD “O” Ring (Teflon Encapsulated Viton)
50130-0024-10001Shaft (316 Stainless)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0130-0022-1000
3 Foot Cord
60Hz: 1Ph 115V 0.066 HP / 0.04 kW, 2.3 AMPS, 3450 RPM

0130-0049-1200
6 Foot Cord
60Hz: 1Ph 230V 0.066 HP / 0.04 kW, 0.9 AMPS, 3450 RPM
50Hz: 1Ph 230V 0.066 HP / 0.04 kW, 1 AMPS, 3450 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the AC-3AP-MD Magnetic Drive Pump include ice makers, laboratory and medical equipment, vapor degreasers, and marine air conditioning systems.

Great for Chemicals Including

The AC-3AP-MD has pumped has pumped Acetic Acid, Acetone, Ammonium Sulfate, Citric Acid, Ethylene Glycol, Ferric Sulfate, Hydrogen Peroxide, Potassium Hydroxide, Sodium Chloride, Fresh Water, Salt Water, and many more chemicals. The AC-3AP-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the AC-3AP-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial AC-3AP-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 10 gallons per minute at 1 feet, and its maximum head is 20.5 Feet (9PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Ceramic, and Ceramic Magnet. The inlet connection is 3/4 inch smooth, and the outlet is 1/2 inch smooth. The standard motor is a 1 Phase 115V or 230V 0.6 Horsepower fan cooled motor, which can be run on 60 hertz on 115V or 50 and 60 hertz on 230V (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March AC-3AP-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March AC-3AP-MD is suitable for your application, please contact March Pump.
