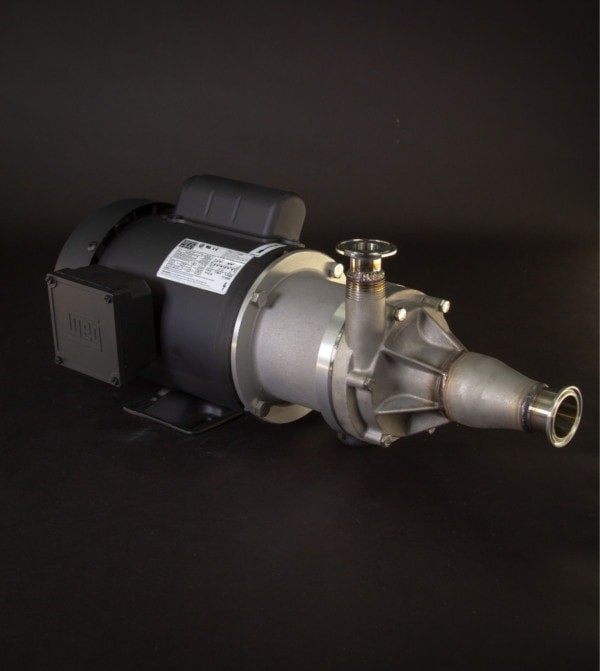

TE-7SSB-MD Beer Magnetic Drive Pump

TE-7SSB-MD Beer Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s TE-7SSB-MD Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for homebrewing. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 57.5 Feet (25PSI).

Unit60Hz
SystemUSMetric
Max Flow53 GPM200 LPM
Max Head57.5 FT17.5 M
Power1 HP.75 KW

Unit50Hz
SystemUSMetric
Max Flow47.5 GPM180 LPM
Max Head39.4 FT12.3 M
Power1 HP.75 KW

Electrical/Air: 1Ph 115/208/230V 60Hz &115/230V 50Hz or 3Ph 208/230/460V 60Hz & 190/380V 50Hz, or 3Ph 575V 60Hz
Inlet: 1.5" Tri Clamp
Outlet: 1.5" Tri Clamp
  • Wet End: 316 Stainless Steel (Front Housing, Rear Housing, Shaft), Glass Filled Kynar (Impeller), EPDM (O-Ring), Ceramic (Thrust Washers), Carbon (Bushing)
  • Additional Motor Options: Available in Explosion Proof or Washdown
  • Max Internal Pressure: 200 PSI / 13.7 bar
  • Max Liquid Temperature: 225 °F / 107 °C
  • Motor Options: Available in 3/4HP, 1HP, 1.5HP, 1HP Explosion Proof or 1.5HP Explosion Proof.
  • Materials are FDA Food Compliant: Components are UL Recognized. Motors have UL File Numbers
  • Note: Product image may be different than actual product received.

Part Numbers


P/NPump DescriptionModified With
0155-0249-0300TE-7SSB-MD 1 Phase 1HP Standard
0155-0249-0400TE-7SSB-MD 3 Phase 1HP Standard
 The below are modified TE-7SSB-MD's

Parts Breakdown

Parts Image

ItemPart NumberQtyDescription
 0155-0249-03001TE-7SSB-MD, 1 Phase, Complete Standard Pump
 0155-0249-04001TE-7SSB-MD, 3 Phase, Complete Standard Pump
10155-0014-100061/4"-20 x 2" Long Screw (Stainless)
20155-0019-100061/4" ID x 1/2" OD Washer (Stainless)
30155-0253-01001Front Housing (316 Stainless)
40155-0105-110011/8" CS x 4-3/8" OD "O" Ring (Ethylene Propylene)
50155-0009-10001Thrust Washer (Ceramic)
60155-0081-100014.257" Long Shaft (Stainless)
70155-0160-02001Impeller w/Carbon Bushing (Glass Filled Kynar)
80155-0035-00101Rear Housing (316 Stainless)
90155-0130-02001Drive Magnet
101095-0015-00101Motor Bracket (Aluminum)
110155-0017-100023/8”-16 ID x 3/4” Long Screw (Stainless)
120155-0019-100043/8” ID x 5/8” OD Washer (Stainless)
130155-0173-10001Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz, 1 HP
140155-0174-10001Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 1 HP

Options

Options Image

ItemPart NumberQtyDescription
 0155-0059-10001Motor, Explosion Proof, 1 Phase (Contact March For Additional Specs)
 0155-0060-10001Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs)
  1Motor, Washdown, 1 Phase (Contact March For Additional Specs)
  1Motor, Washdown, 3 Phase (Contact March for Additional Specs)
 0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0155-0173-1000 Motor
Conduit Box, TEFC, IP55
60Hz: 1Ph 1 HP / 0.75 kW, 115-208/230V, 12.6-6.3/6.2 AMPS, 3450 RPM
50Hz: 1Ph 1 HP / 0.75 kW, 110/220V, 14.3/7.1 AMPS, 2850 RPM

0155-0174-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 1 HP /0.75 kW, 208-230/460V, 3.3-3.1/1.5 AMPS, 3450 RPM
50Hz: 3Ph 1 HP /0.75 kW, 190/380V, 3.3/1.7 AMPS, 2850 RPM (Usable at 220/415V)

Please contact us for alternative motor data

Great for Chemicals Including

The TE-7SSB-MD Beer Pump has pumped Hot Water and Hot Wort. The TE-7SSB-MD Beer Pump may have to modified to handle other chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7SSB-MD Beer Pump.

Summary Paragraph

March Pump’s TE-7SSB-MD Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for homebrewing. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 57.5 Feet (25PSI). The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Glass Filled Kynar, EPDM, Mica Teflon, and Ceramic. The inlet connection is 1.5 inch Tri Clamp, and the outlet is 1.5 inch Tri Clamp. The standard motor is a 1 Phase 115V/230V 1 Horsepower totally enclosed fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 225 Fahrenheit or 107 Celsius. To determine if the March TE-7SSB-MD Beer Pump is suitable for your application, please contact March Pump.
