815-PL-C Beer Magnetic Drive Pump

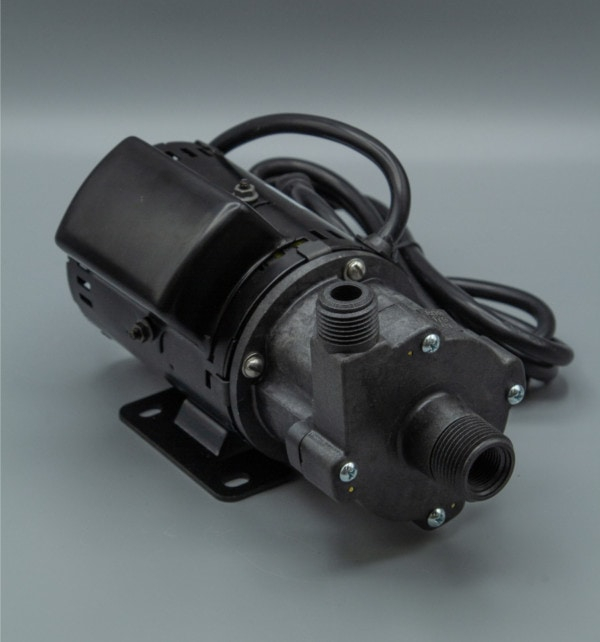

815-PL-C Beer Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial 815-PL-C Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for applications such as home brewing and hot water systems. It is capable of generating a maximum flow of 8 gallons per minute at 3 feet, and its maximum head is 18.6 Feet (8PSI).

Unit60Hz
SystemUSMetric
Max Flow8 GPM 30 LPM
Max Head18.6 FT4.1 M
Power.04 HP.029 KW
Unit50Hz
SystemUSMetric
Max Flow7.9 GPM30.3 LPM
Max Head13.5 FT5.7 M
Power.04 HP.029 KW
Electrical/Air: 115V 50/60Hz
Inlet: 3/8"FPT and 3/4"MPT
Outlet: 1/2"MPT
  • Wet End: Polysulfone (Front Housing), Stainless Steel (Rear Housing and Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
  • Materials are FDA Food Compliant: Components are UL Recognized
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 250 °F / 121 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0809-0188-0100815-PL-C 115V Beer Pump Standard

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0815-0188-01001815-PL-C, 1 Phase, 115V, Complete Standard Pump
10923-0003-10004#8-32 x 1" Long Housing Screw (Steel)
20809-0179-01001Pump Housing with Center Inlet (Polysulfone)
30809-0027-100011/16" CS x 2-3/8" ID "O" Ring (Silicone)
40809-0043-10001Thrust Washer (Teflon)
50809-0161-10001"D" Flat Shaft (Stainless)
60809-0107-020012-5/32" Diameter Impeller (Ryton/Teflon/Glass)
70809-0012-10001Rear Housing (Stainless)
80135-0040-10004#8-32 x 3/8" Long Rear Housing Screw (Stainless)
90125-0083-01001Drive Magnet
100135-0040-10004#8-32 x 3/8" Long Screw (Stainless)
110858-0004-10004#8 Washer (Stainless)
120809-0058-10001Motor Bracket (Plastic)
130809-0218-10001Motor, 1 Phase, 115V, 50/60 Hz, with Base



Options

Options Image
ItemPart NumberQtyDescription
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0809-0218-1000 Motor
6 Foot Cord and Plug
60Hz: 1Ph 115V 0.04HP / 0.029kW, 0.5 AMPS, 3450 RPM
50Hz: 1Ph 115V 0.04HP / 0.029kW, 0.4 AMPS, 2850 RPM

Please contact us for alternative motor data

Great for Chemicals Including

The 815-PL-C Beer Pump has pumped Hot Water and Hot Wort. The 815-PL-C Beer Pump may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 815-PL-C Beer Pump.

Summary Paragraph

March Pump’s industrial 815-PL-C Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for applications such as home brewing and hot water systems. It is capable of generating a maximum flow of 8 gallons per minute at 3 feet, and its maximum head is 18.6 Feet (8PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polysulfone, Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 3/8 inch female pipe thread and 3/4 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.04 Horsepower fan cooled motor, which can be run on 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 815-PL-C Beer Pump is suitable for your application, please contact March Pump.
