TEST LC-2M-MD Marine Pump

Summary Paragraph

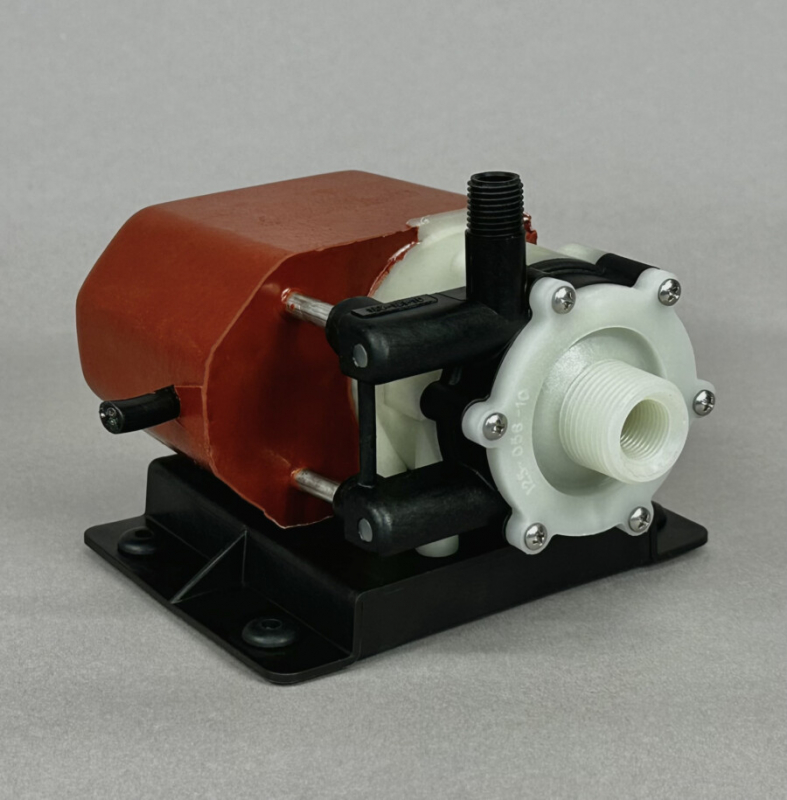

March Pump’s industrial LC-2M-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 5 gallons per minute at 1 foot, and its maximum head is 13 Feet (5.5PSI).  It is capable of 12,000 BTU per hour.  The LC-2M-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Nylon, Viton, Buna N, Stainless Steel, Ceramic, and Ceramic Magnet.  When submerged, Epoxy, Buna N, and the Cord are also in contact with the solution. The inlet connection is 3/8 inch female pipe thread and 3/4 inch male pipe thread, and the outlet is 1/4 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.02 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options).  The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March LC-2M-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March LC-2M-MD is suitable for your application, please contact March Pump.

The pump is Ignition Protected per SAE J1171 and ISO 8846.
