TE-5S-MD-AM Magnetic Drive Pump

TE-5S-MD-AM Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild

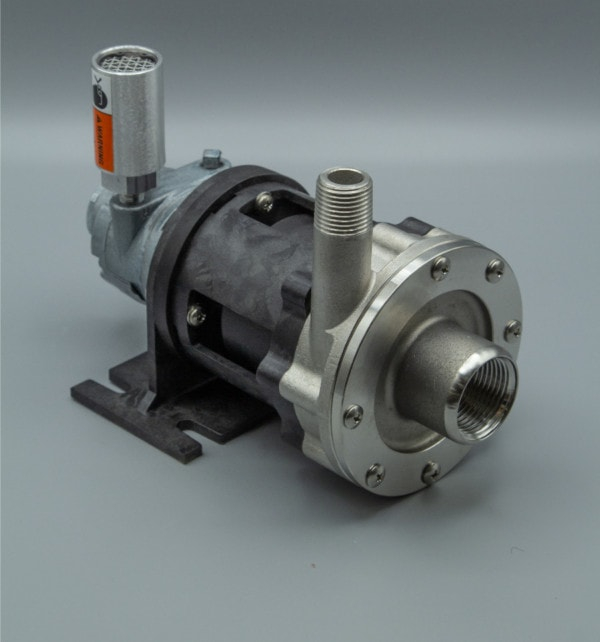

March Pump’s industrial TE-5S-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 18 gallons per minute at 1 foot, and its maximum head is 50 Feet (21PSI).

SystemUSMetric
Max Flow18 GPM68 LPM
Max Head50 FT15.2 M
Power0.125 HP0.093 KW


Electrical/Air: 60PSI and 7CFM
Inlet: 1"FPT
Outlet: 1/2"MPT
  • Wet End: 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
  • Max Internal Pressure: 200 PSI / 13.7 bar
  • Max Liquid Temperature: 250 °F / 121 °C
  • Note: Product image may be different than actual product received.

Part Numbers

0150-0120-0500, TE-5S-MD-AM

Parts Breakdown

Parts Image

ItemPart NumberQtyDescription
 0150-0120-05001TE-5S-MD-AM Complete Standard Pump
10150-0021-10007#8-32 x 1-3/4” Long Screw (Stainless)
20150-0111-00101Cover with 1” FPT Inlet (316 Stainless)
30750-0986-100010.078” CS x 2.834” ID “O” Ring (Viton)
40130-0028-10001Thrust Washer (Ceramic)
50130-0024-10001Shaft (Ceramic)
60150-0114-04001Encapsulated Impeller with Carbon Bushing (316 Stainless)
70150-0110-00101Rear Housing with 1/2" MPT Outlet (316 Stainless)
80151-0061-02001Drive Magnet
90145-0010-10001Motor Bracket (Plastic)
100115-0023-10004#8-32 x 1-1/8" Long Screw
110858-0004-10004#8 Washer
120986-0001-01001Connecting Bracket
130210-0038-10002#8-32 Set Screw
140125-0106-10001Base
150858-0003-10004#8 Split Lock Washer
160410-0039-10004#8 Nut
170986-0002-10001Air Motor

Options

Options Image

ItemPart NumberQtyDescription
30750-0987-100010.078" CS x 2.834" ID "O" Ring (Buna N)
30150-0212-100010.078" CS x 2.893" ID "O" Ring (Teflon Encapsulated Viton)
30750-0053-100010.078" CS x 2.834" ID "O" Ring (EPDM)
50130-0147-10001Shaft, 3 Flats (Ceramic)
50939-0003-10001Shaft (316 Stainless)
60150-0114-06001Impeller with Mica Teflon Bushing (316 Stainless)
60150-0098-02001Impeller (Polypropylene)
60150-0098-03001Impeller with Carbon Bushing (Polypropylene)
60150-0098-05001Impeller with Mica Teflon Bushing (Polypropylene)
60150-0125-02001Impeller (Kynar)
60150-0125-03001Impeller with Carbon Bushing (Kynar)
60150-0125-05001Impeller with Mica Teflon Bushing (Kynar)
 0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)
   Flanges (Not Shown)

Motor Information

0986-0002-1000 Motor
0.125HP/0.093kW, 60PSI and 7CFM, 1/8″NPT Air Connection

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-5S-MD-AM Magnetic Drive Pump include chemical recirculation, chemical transfer, small scrubbers, detergent mixers, and carbon arc furnace cooling.

Great for Chemicals Including

The TE-5S-MD-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Potassium Chloride, Potassium Hydroxide, Sodium Chloride, Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, and many more chemicals. The TE-5S-MD-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-5S-MD-AM. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-5S-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 18 gallons per minute at 1 foot, and its maximum head is 50 Feet (21PSI). The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Viton, Carbon, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a .125 Horsepower compressed air motor which requires 60PSI. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. The March TE-5S-MD-AM centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5S-MD-AM is suitable for your application, please contact March Pump.
